Create Debug Application

This document provides detailed instructions on how to create and configure debug applications on the GM platform, helping developers quickly set up their development environment.

Operation Steps

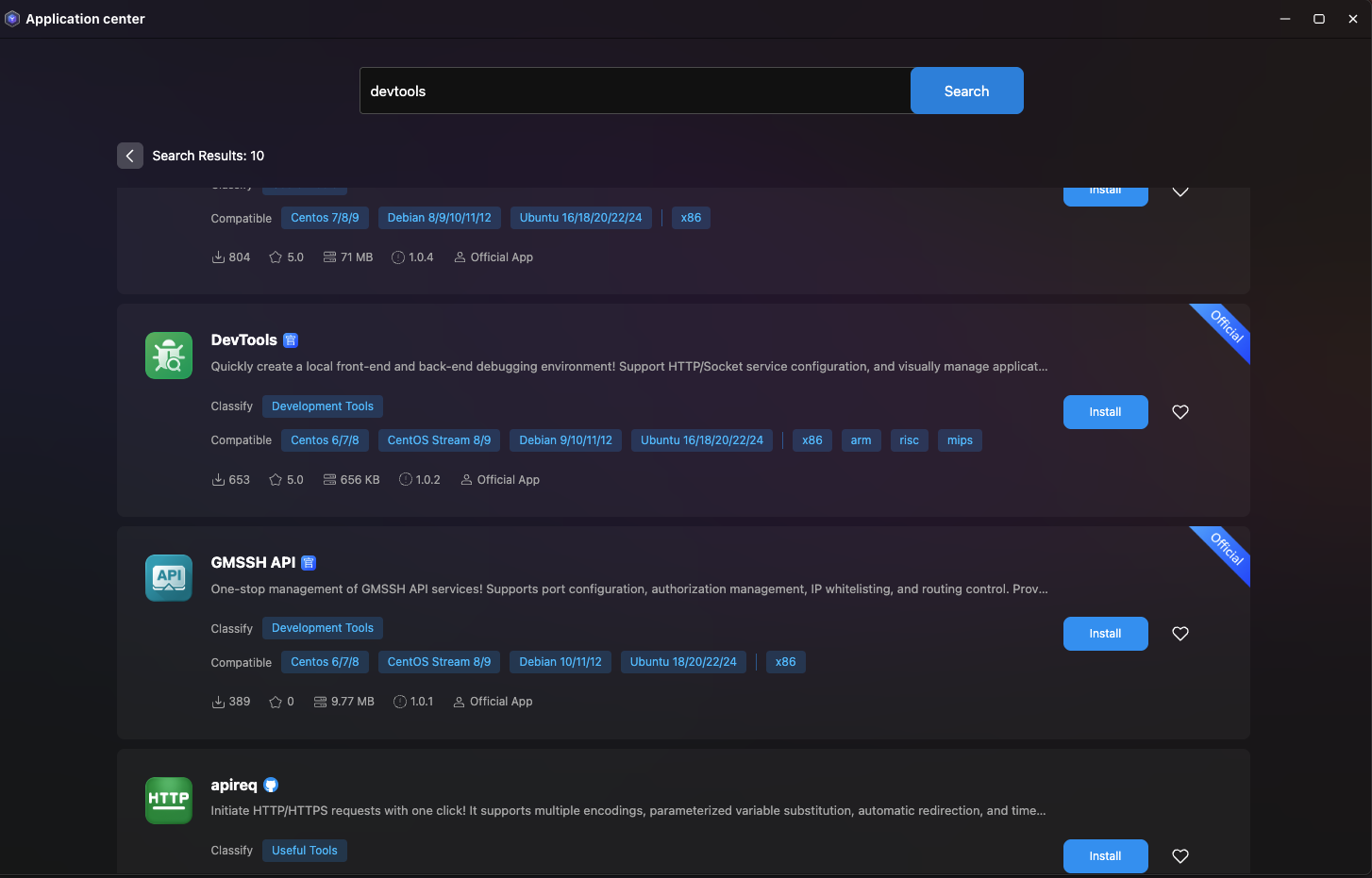

Step 1: Download Application

Download Application

Detailed Operation Process

1. Visit Application Center

   • After logging into the GM platform, click "Application Center"

2. Search for DevTools Application

   • Enter devtools in the search box
   • The system will automatically filter related applications

3. Download and Install

   • Click the "Install" button

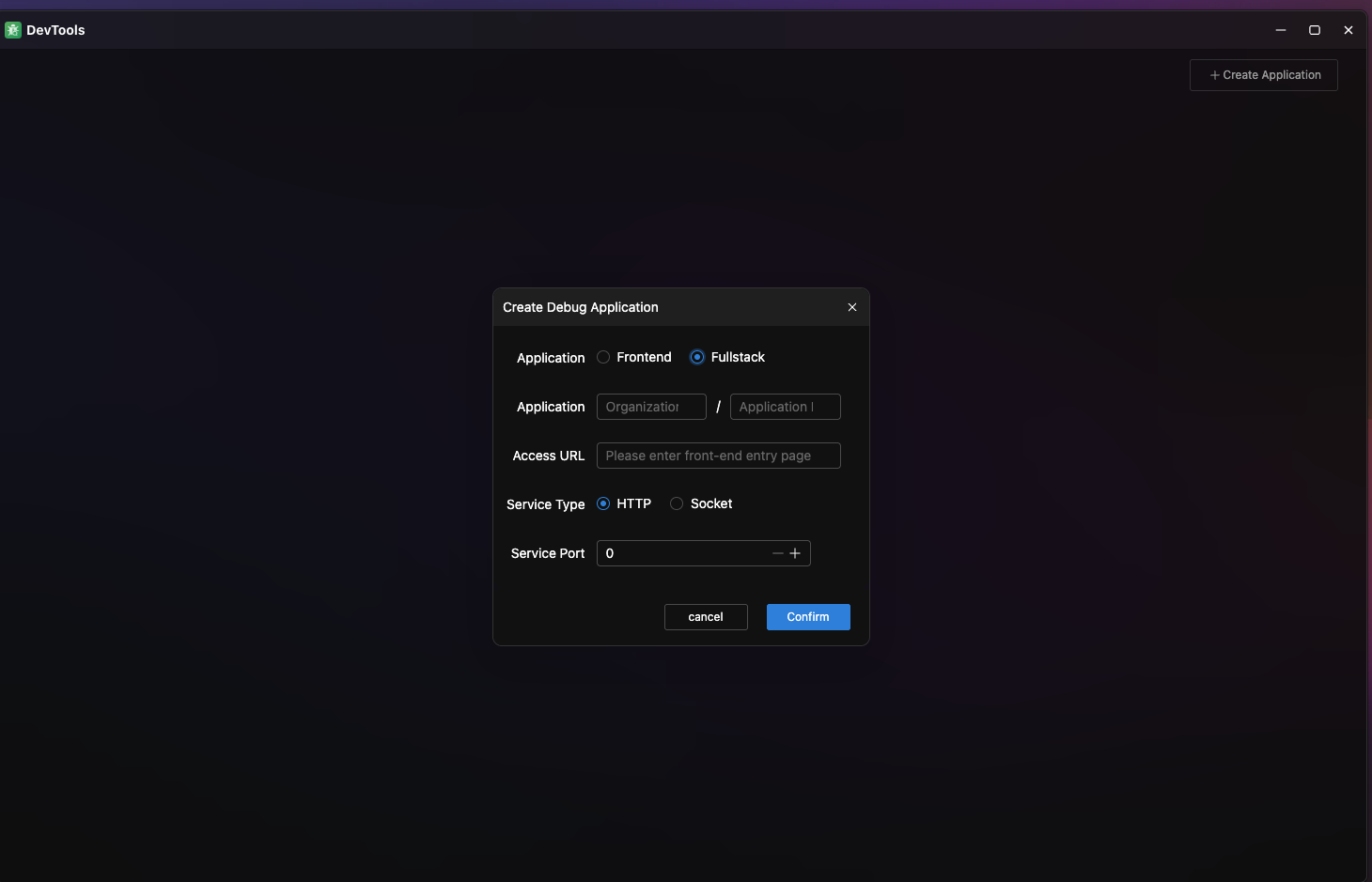

Step 2: Create Debug Application

Create Debug Application

Application Type Selection

Frontend Application
Suitable for pure frontend projects, such as Vue, React, Angular single-page applications.

Full-stack Application
Includes frontend and backend services, supporting the following backend types:

Service Type	Use Case	Configuration Requirements
HTTP	REST API, Web services	Specify port number (e.g., 8080, 3000)
Socket	Real-time communication, long-connection services	Specify Socket file path

Configuration Parameter Details

Application Name Specification

Format requirement: org-name/app-name

Examples:

• ✅ mycompany/frontend-app
• ✅ team-alpha/api-service
• ❌ myapp (missing organization name)
• ❌ my company/app (contains spaces)

Port Configuration

HTTP service port:

• Recommended port range: 3000-9999
• Avoid system reserved ports (e.g., 80, 443, 22)
• Ensure the port is not occupied by other services

Socket file path:

• Use absolute path (e.g., /tmp/app.sock)
• Ensure the directory has write permission
• Recommend using /tmp or /var/run directory

Step 3: Manage Applications

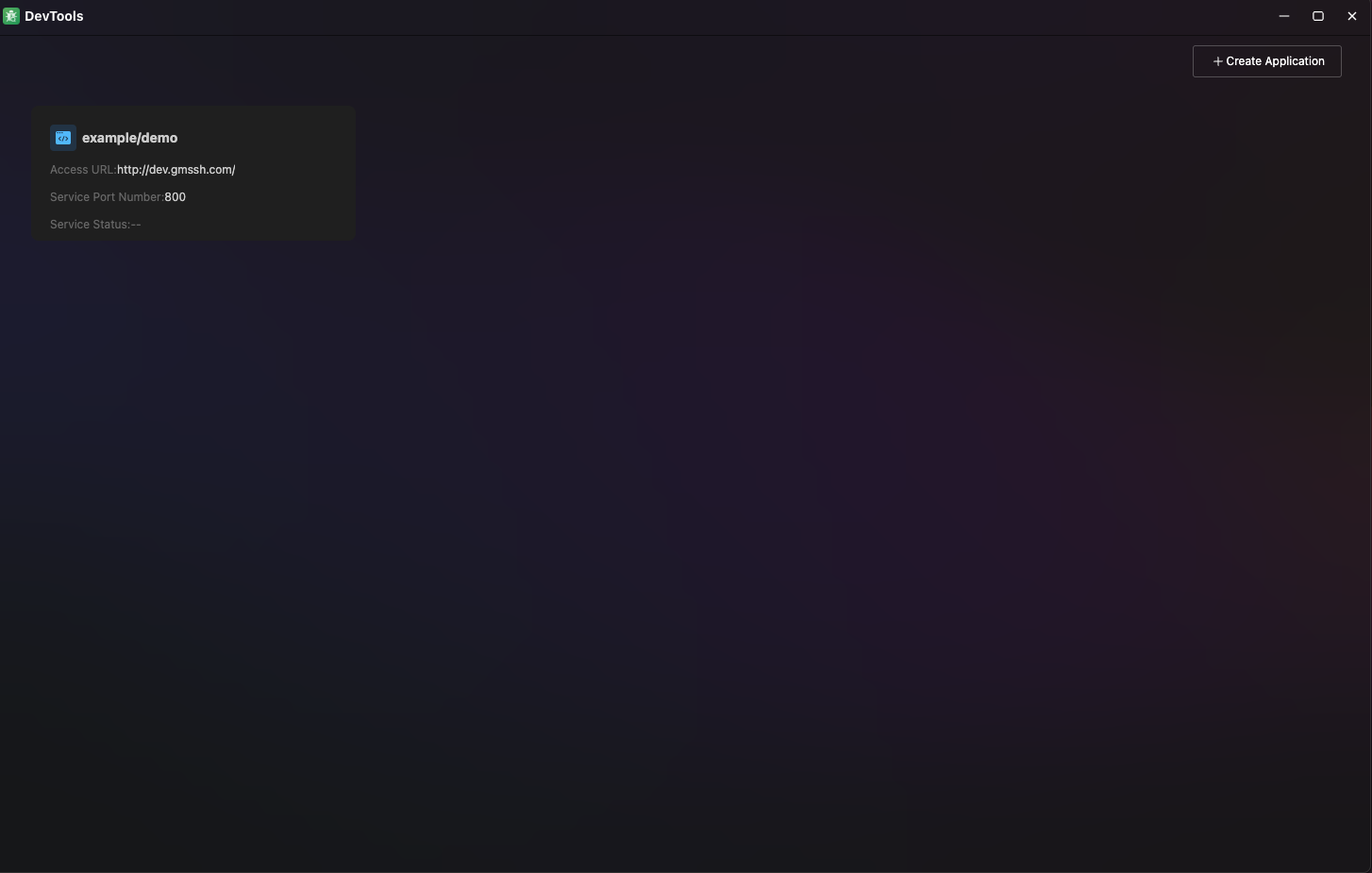

Debug Application List

Application Status Monitoring

After creation, you can view the status information of all applications on the DevTools homepage:

1. Basic information of the debug application
2. If there is a backend service, you can view the backend service status

Best Practices

Naming Conventions

• Organization Name: Use team or company identifier
• Application Name: Concise and clear, reflecting application functionality
